Fiber optic dip probe for direct in-situ analysis
Transmission Dip Probes
for UV-Vis Spectroscopy

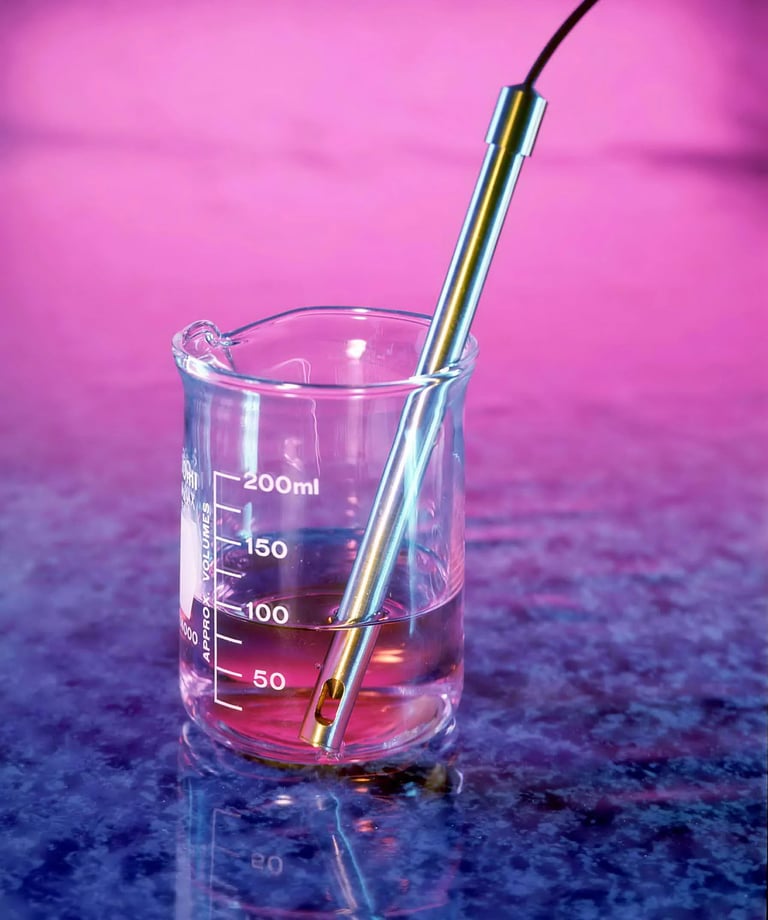

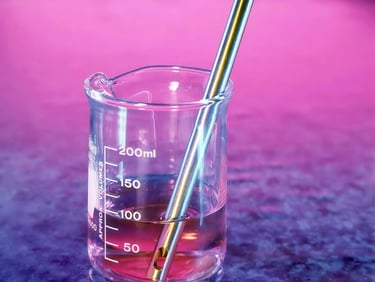

The fiber optic dip probe is the most popular sampling accessory for use with the 400 Series spectrophotometers. Our exclusive design includes dedicated illumination fibers for deuterium and tungsten sources for uncompromised light throughput allowing signal optimization for both sources.
Dip probes eliminate the need to transfer sample to traditional cuvettes for liquid measurements.
Unlike fragile quartz cuvettes, dip probes are extremely rugged and constructed of stainless steel and covers the wavelength range from 190 nm - 980 nm. This durable construction is ideal for industrial and university environments making them essentially student proof from damage.
A 1.0 cm pathlength dip probe is offered as an optional accessory with all new system purchases and can also be purchased separately.
Dip probes can be configured with 0.2, 0.5 and 1.0 cm pathlengths and extended cable lengths as necessary to meet your application needs.
Probe Specifications
Wavelength Range: 190 nm - 980 nm
Material: 316 stainless steel
Diameter: 3/8" (9.5 mm)
Probe Body Length: 5.5" (140 mm)
Path Lengths: 0.2 cm, 0.5 cm and 1.0 cm
Fiber Length: 28" (additional lengths available)
Fiber Termination: SMA905
Maximum Temperature: 392F (200 C)
Evaluate a Instrument in Your Laboratory, on Your Bench
Request a complete CCD-array spectrophotometer system with specialized fiber optic accessories for a risk-free, two-week evaluation period on your laboratory bench.
