S.I. Photonics Model 440 UV-Vis spectrophotometer with fiber optic cuvette sampling bench

Model 440 UV-Vis spectrophotometer equipped with fiber optic cuvette optics bench

Precision
UV-Vis Spectroscopy

Instantaneous, full wavelength spectral acquisition with no moving parts. Versatile fiber optic sampling accessories engineered for direct in-situ sampling without complex laboratory preparation to meet virtually any application along with custom designs to meet customer needs.

Intuitive software and superior optical design offer faster data acquisition than conventional scanning spectrophotometers with better sensitivity and resolution than diode array spectrometers.

Flexible Sampling Hardware

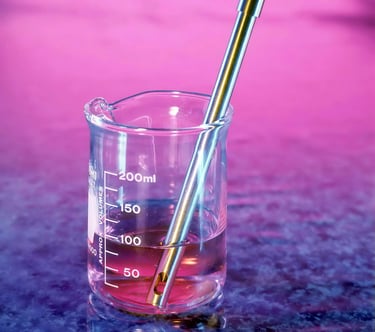

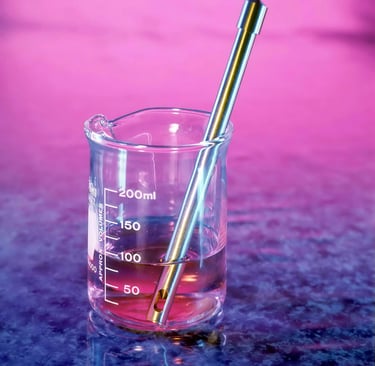

A complete assortment of fiber optic dip probes, transmission flow through cells, and high-speed detection software designed for direct analytical laboratory workflows.

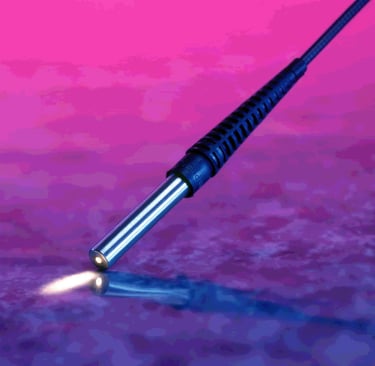

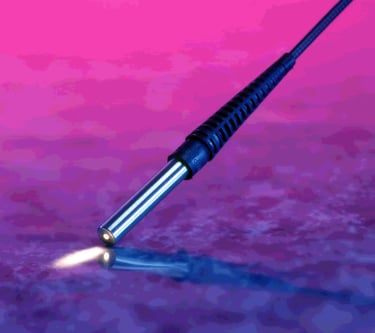

Fiber optic reflectance probe for spectroscopy and color analysis

Universal optics bench for use with cuvettes

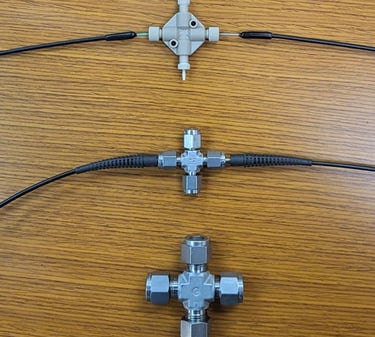

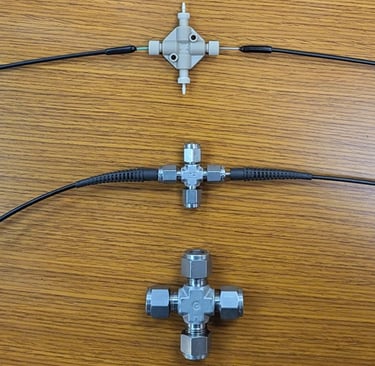

Flow through cells options for UV-Vis spectroscopy

Remote integrating sphere for diffuse reflectance and color analysis

Universal optics bench for use with glass slides and thin film analysis

Technical Benchmarks

Instrument Specifications

Optical Engine

Coupling & Probes

Data Acquisition

Spectral Range: 190 to 980 nm
Detector: linear CCD array
Optical Resolution: 1.1 nm
Engineered for precise stray light rejection.

Interface: Dual SMA 905 connections Fiber Core: UV solarization-resistant Sampling: Fiber optic including direct
in-situ immersion

Integration Time: 4 milliseconds minimum
Scan Rate: 80 full spectra per second PC Interface: High-speed USB for real-time monitoring.

Request Evaluation

Evaluate a Instrument in Your Laboratory, on Your Bench

Request a complete CCD-array spectrophotometer system with specialized fiber optic accessories for a risk-free, two-week evaluation period on your laboratory bench.
